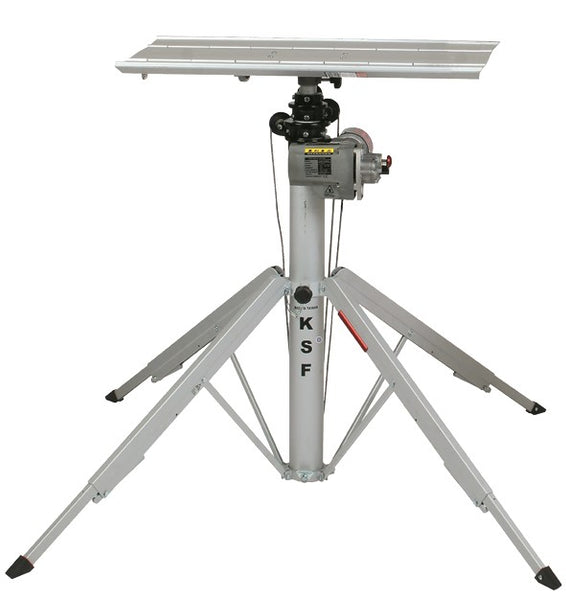

KSF CM340 Tbar Hoist 3.3m Lift, 130kg


The CM-340 is the most compact electric lifter in its class.

Adjustable legs enable the CM-340 to work on uneven surfaces and it can still fold into a compact package for transporting.

The CM340 is ideal for domestic and smaller commercial operators.

The CM340 can lift a maximum weight of 130kg and can lift to a height of 3.3 meters.


  • Constructed with heat treated, robust aluminum - compact, safe and reliable.

  • Telescoping mast

  • No tools required to setup the lift - simply undfold, setup and operated within 60 seconds.

  • Single Person setup.

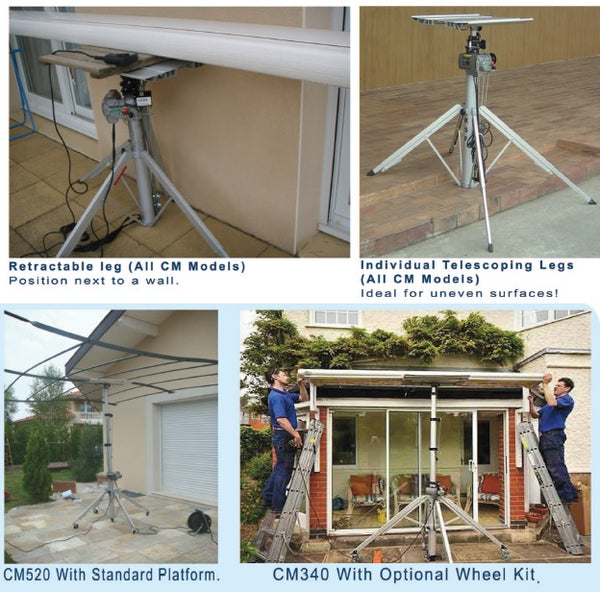

  • 4 Legs stabilise the lifter. Each leg has variable, independant adjustment for uneven ground - such as stairways. One leg is indepenant so you can operate adjacent to a wall.

  • Controller with variable speed switch.

  • Variable speed controller enables soft start with fine adjustment for operating height.

  • Emergency Stop Button.

  • Manual override: In case of power failure or sites with no power operate manually with supplied handle or cordless drill and 17mm socket.

  • Automatic Overload clutch: Prevents apprentices overloading the lifter.

  • Level included - Assists alinging the mast vertically with the adjustable legs.

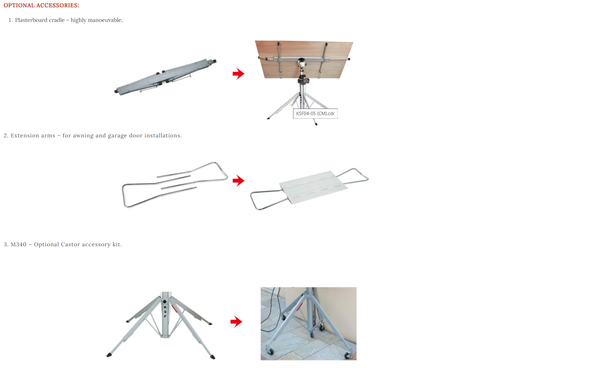

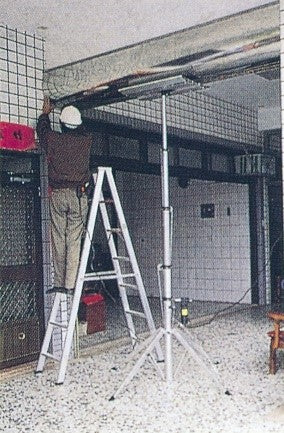

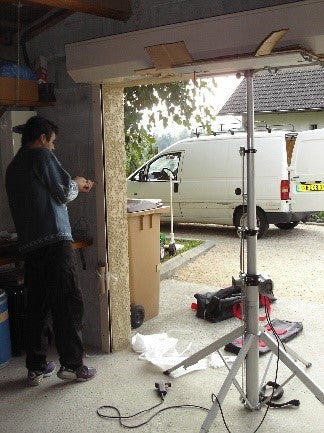

  • Platform standard - for air conditioners, awnings, garage doors etc. Optional extesion arms available.

  • Highly Portable, the compact design folds, making it easy for one person to carry the lifter to/from job.

  • Easily transported in van, car or utility.

  • Optional Wheel Kit available.

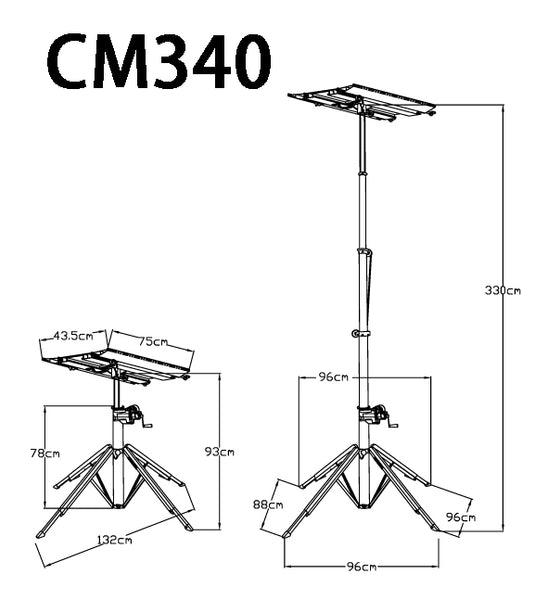

Max Lifting Height  3.3m
Capacity 130kg
Stowed Height 0.97m
Machine Weight 22kg


Explore our range of material handling & hire access equipment and also check our range of forklifts, duct lifters, pallet trucks and load restraints. Get a free quote or contact us for more information.

Platform Height 3.8m
Stowed Height 1.04m
Weight 34kg
Lift Capacity 136kg
