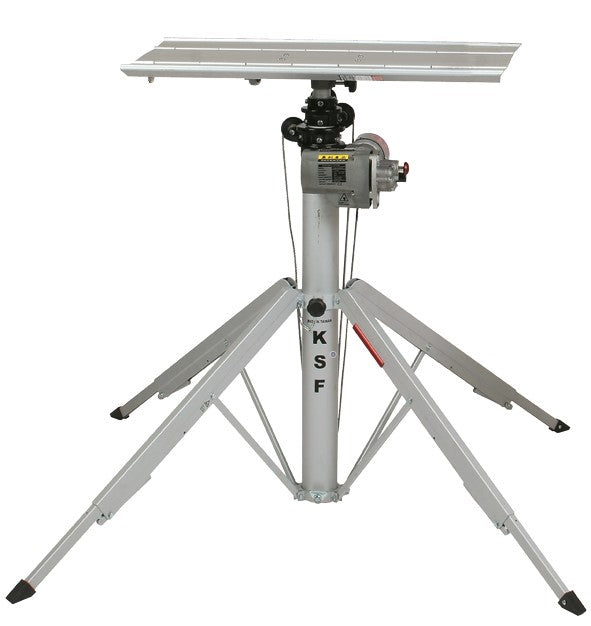

KSF CM340 Tbar Hoist 3.3m Lift, 130kg

The CM-340 is the most compact electric lifter in its class.
Adjustable legs enable the CM-340 to work on uneven surfaces and it can still fold into a compact package for transporting.
The CM340 is ideal for domestic and smaller commercial operators.
The CM340 can lift a maximum weight of 130kg and can lift to a height of 3.3 meters.
Overview
-
Constructed with heat treated, robust aluminum - compact, safe and reliable.
-
Telescoping mast
-
No tools required to setup the lift - simply undfold, setup and operated within 60 seconds.
-
Single Person setup.
-

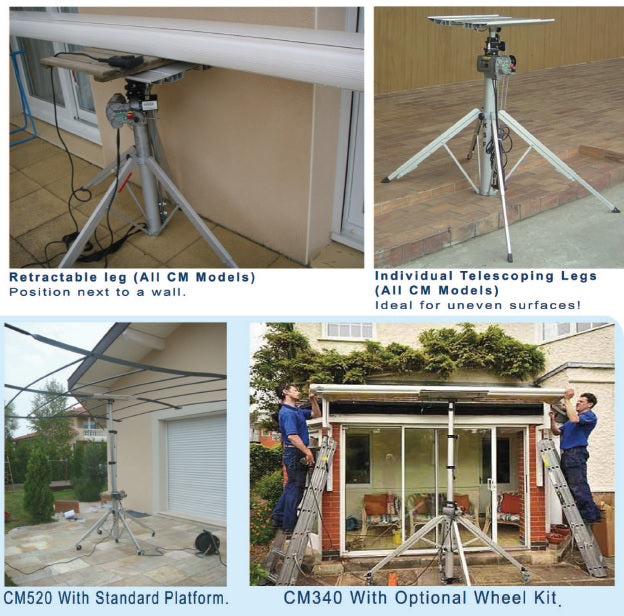

4 Legs stabilise the lifter. Each leg has variable, independant adjustment for uneven ground - such as stairways. One leg is indepenant so you can operate adjacent to a wall.
-
Controller with variable speed switch.
-
Variable speed controller enables soft start with fine adjustment for operating height.
-
Emergency Stop Button.
-
Manual override: In case of power failure or sites with no power operate manually with supplied handle or cordless drill and 17mm socket.
-
Automatic Overload clutch: Prevents apprentices overloading the lifter.
-
Level included - Assists alinging the mast vertically with the adjustable legs.
-

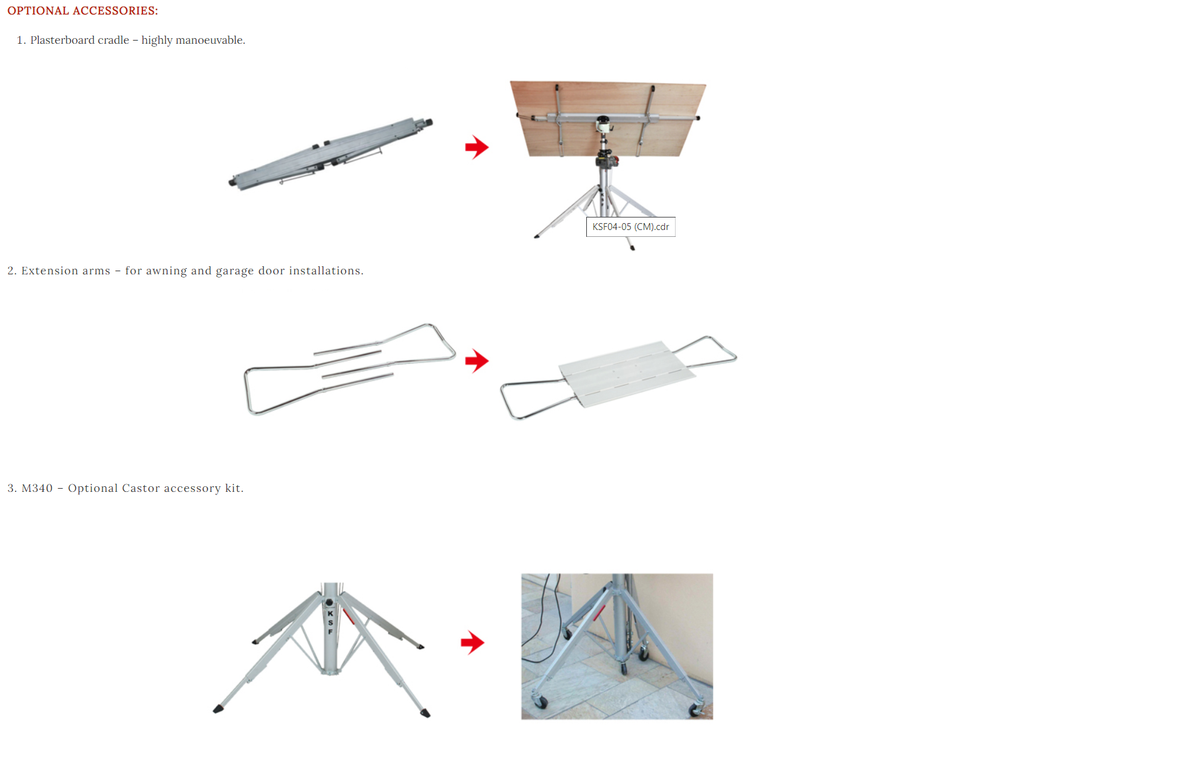

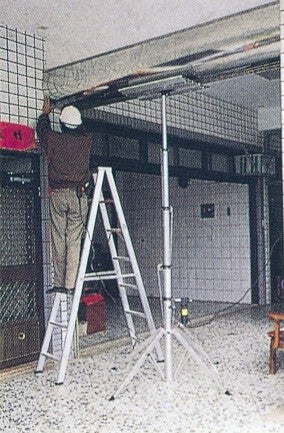

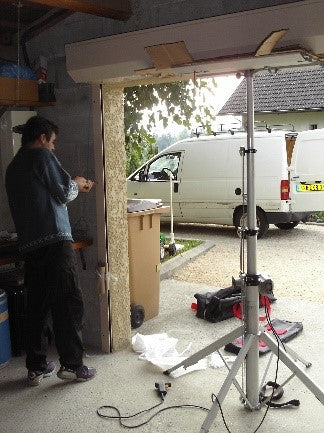

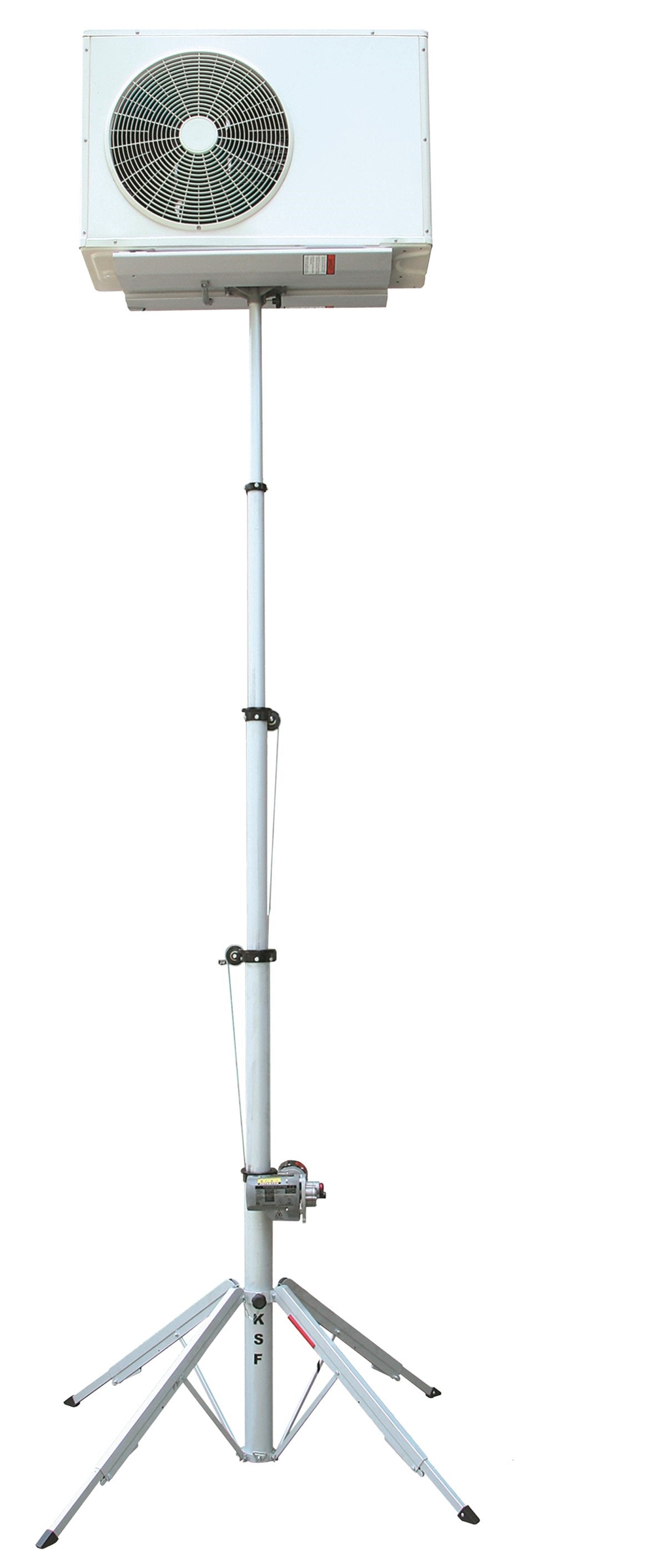

Platform standard - for air conditioners, awnings, garage doors etc. Optional extesion arms available.
-
Highly Portable, the compact design folds, making it easy for one person to carry the lifter to/from job.
-
Easily transported in van, car or utility.
-
Optional Wheel Kit available.

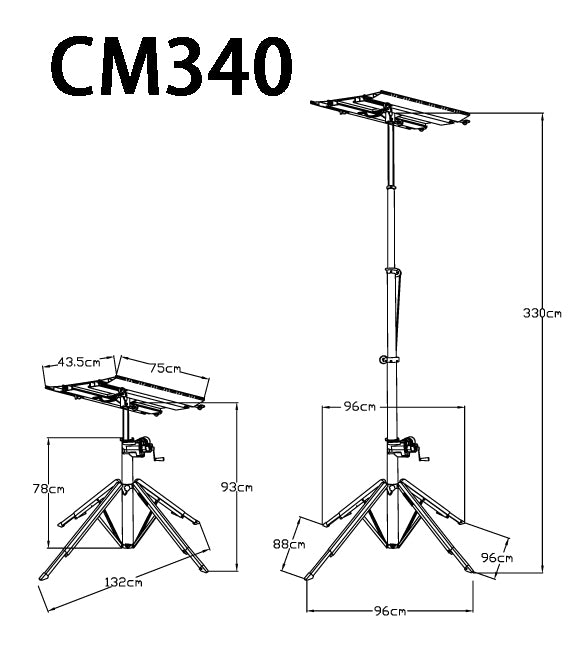

Max Lifting Height | 3.3m |
Capacity | 130kg |
Stowed Height | 0.97m |
Machine Weight | 22kg |
