Crane Drum Rotator For Safe And Precise Drum Handling

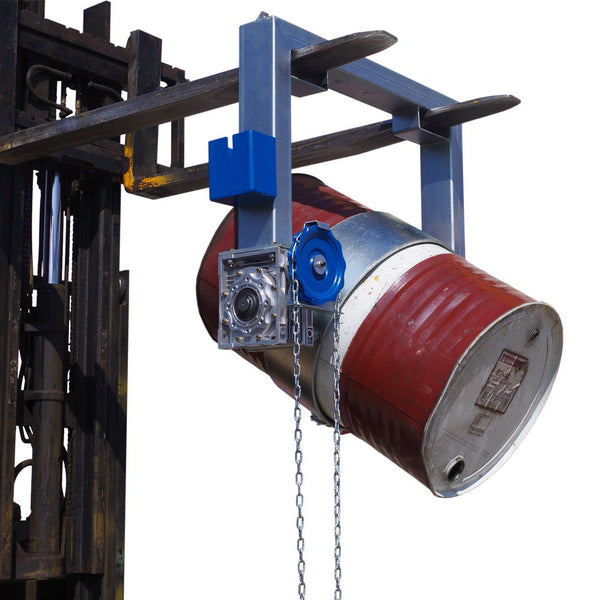

This versatile drum rotator is designed to lift and rotate 205 litre steel drum 360 degrees by an overhead crane or forklift. Rotation of the drum is controlled throughout the operation by the chain driven gearbox which locks the drum in position when the operator stops pulling the chain, preventing dangerous and uncontrolled movements.
FEATURES:
• Can be lifted using an overhead crane or forklift
• Suitable for drum rotation up to 3m above ground height
• Empties a standard 205 litre drum with minimal effort
• Rotation carried out via a hand chain
• Eccentric lock secures drum in position
• Locking pin prevents accidental release during tipping cycle
• Large worm drive gearbox provides automatic braking.
SPECIFICATIONS
| Model | DHE-400DRC |
| Lifting Capacity | 400kg |
| Fork Pocket Size | 160 x 65mm |
| Net Weight | 75kg |
| Weight | 75kg |
| Lift Capacity | 400kg |
