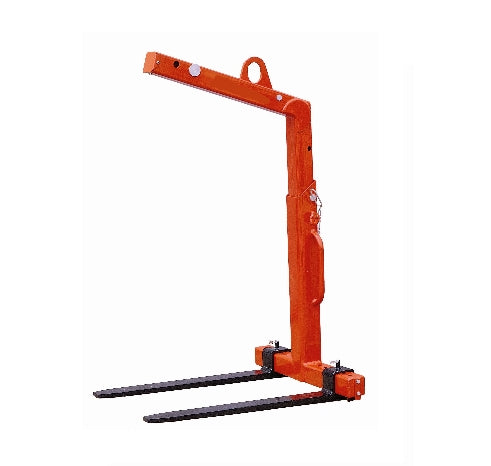

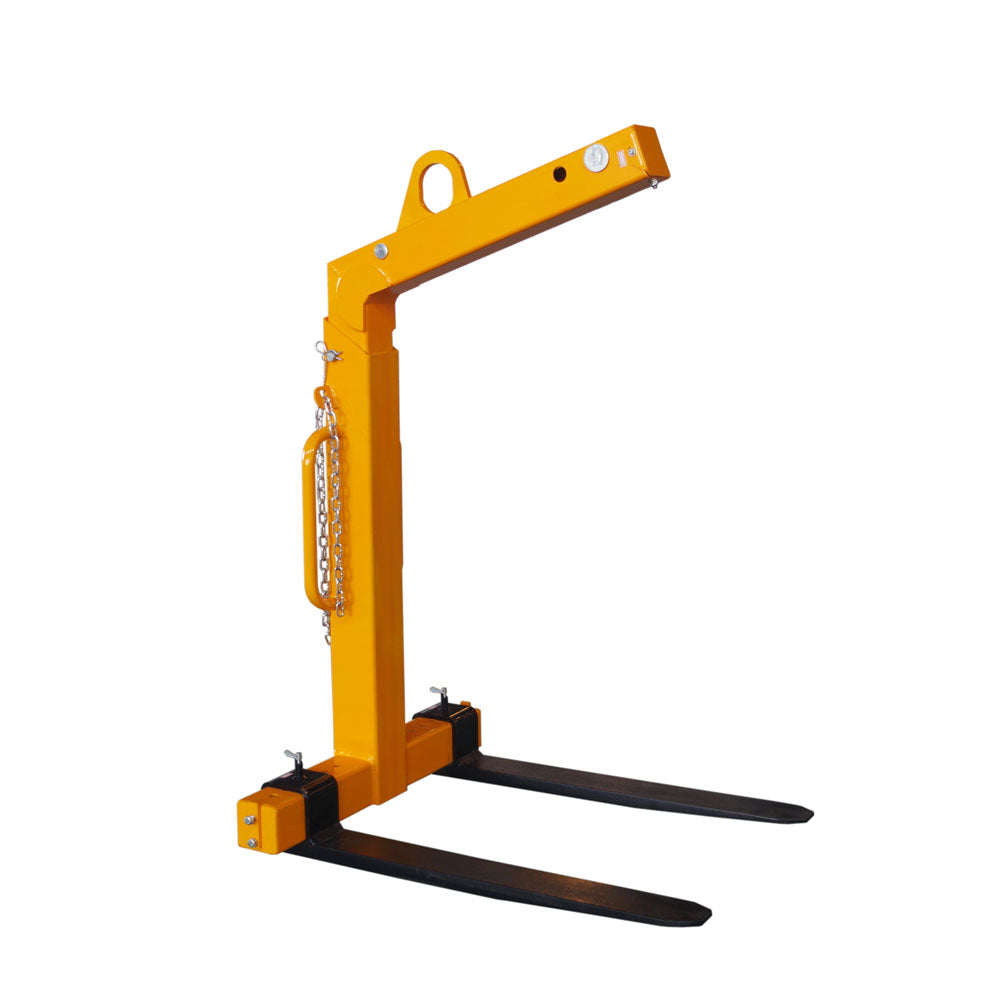

Self-Levelling Crane Pallet Lifters – 1T to 5T (DHE-PLCY Series)
The DHE-PLCY Self-Levelling Crane Pallet Lifter Series is engineered for safe, efficient and balanced lifting in industrial environments. Each model features an automatic weight-balancing system, adjustable fork tines, and adjustable lifting height, ensuring stable and controlled load handling during transport and lifting.
The automatic self-levelling mechanism prevents the load from sliding off the tines by keeping the forks tilted upward when unloaded. Once a load of at least 20% of the WLL is applied, the gas-spring balancing system engages, positioning the load at the correct centre of gravity for safe lifting.
These units are highly versatile, maintenance-free, and suitable for lifting pallets, coils, rings, and irregular loads. Operators can easily adjust tine spacing and height to suit different load sizes, making the PLCY Series ideal for warehouses, construction sites, fabrication facilities, logistics operations, and manufacturing plants.
Key Features
-
Automatic self-levelling balancer for stable, secure lifting
-
Adjustable fork width to suit various pallet sizes
-
Height adjustable for different crane setups
-
Gas-spring balancing system that centres the load once engaged
-
Tines tilt upward when unloaded to prevent accidental load slip
-
High-visibility design for improved onsite safety
-
Maintenance-free mechanism for long service life
-
Ideal for construction, logistics, warehousing & manufacturing
-
Engineering and load test certificates available (on request)
Specifications Table
| Model | SWL (kg) | Unit Weight | Adjustable Fork Width | Hook Height | Effective Height | Fork Length | Fork Cross | Overall Size (mm) |
|---|---|---|---|---|---|---|---|---|
| DHE-PLCY1 | 1000 kg | 138 kg | 350–900 mm | 1420–1920 mm | 1300–2000 mm | 1000 mm | 100 × 30 mm | — |
| DHE-PLCY2 | 2000 kg | 218 kg | 400–900 mm | 1655–2355 mm | 1300–2000 mm | 1000 mm | 120 × 40 mm | — |
| DHE-PLCY3 | 3000 kg | 280 kg | 450–900 mm | 1720–2420 mm | 1300–2000 mm | 1200 × 1000 mm | — | 1140 × 920 × 1670 |
| DHE-PLCY5 | 5000 kg | 380 kg | 530–1000 mm | 1710–2410 mm | 1300–2000 mm | 1500 × 1000 mm | — | 1160 × 1020 × 1850 |
If your application requires manual weight control rather than automatic self-levelling, our DHE-PLCK Crane Pallet Lifters provide an excellent alternative.
| Weight | 138kg |
| Lift Capacity | 1,000kg |
