Forklift Jib 2.5 Tonne Rigid Long - DHE-RJL2.5

Forklift Jib 2.5 Tonne Rigid Long – DHE-RJL2.5

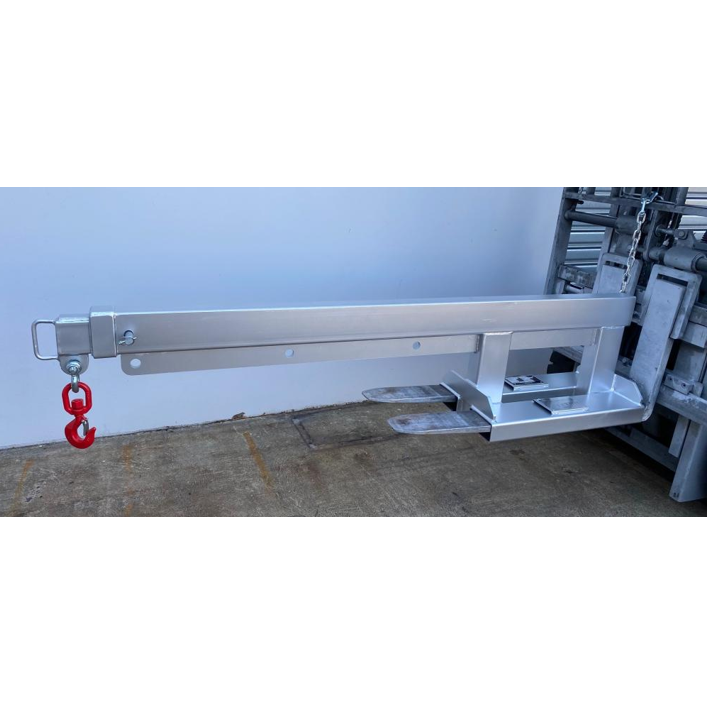

The DHE-RJL2.5 Rigid Jib (Long) is a versatile, high-reach forklift attachment designed for general lifting applications requiring extended distance and elevated load handling. Offering a maximum reach of 3.52 metres and a retracted length of 950 mm, this long rigid jib provides excellent capability for long-reach lifts across warehouses, workshops, distribution centres and construction sites.

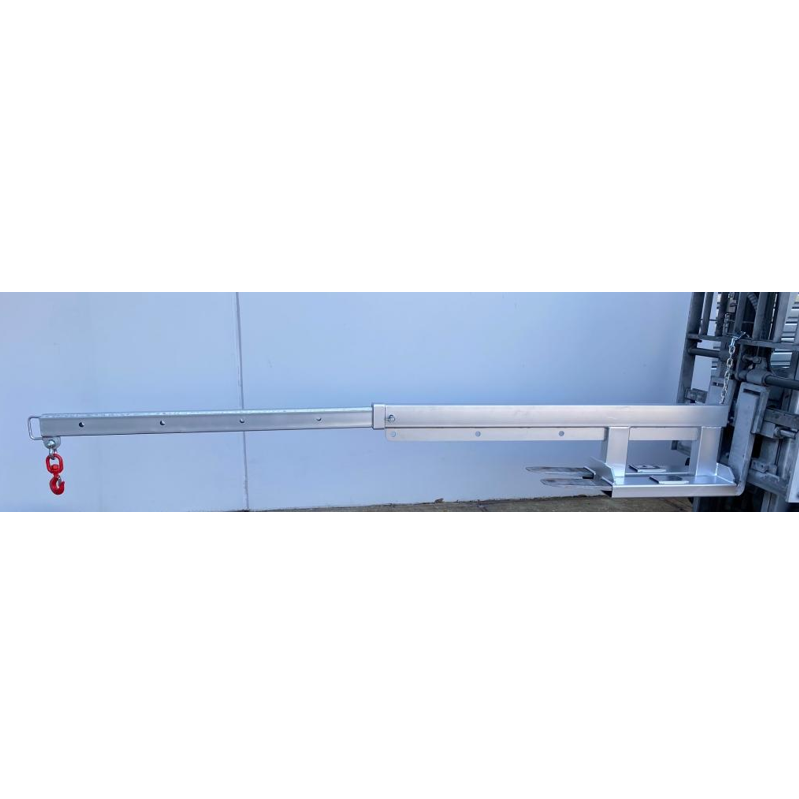

With eight hook positions ranging from 950 mm through to 3520 mm, the RJL2.5 offers flexible lifting options with Safe Working Loads from 2500 kg down to 240 kg depending on extension. Built from a robust 135 kg steel frame and finished in a durable hot dipped galvanised coating, this jib delivers strength, durability and corrosion resistance for long-term industrial use.

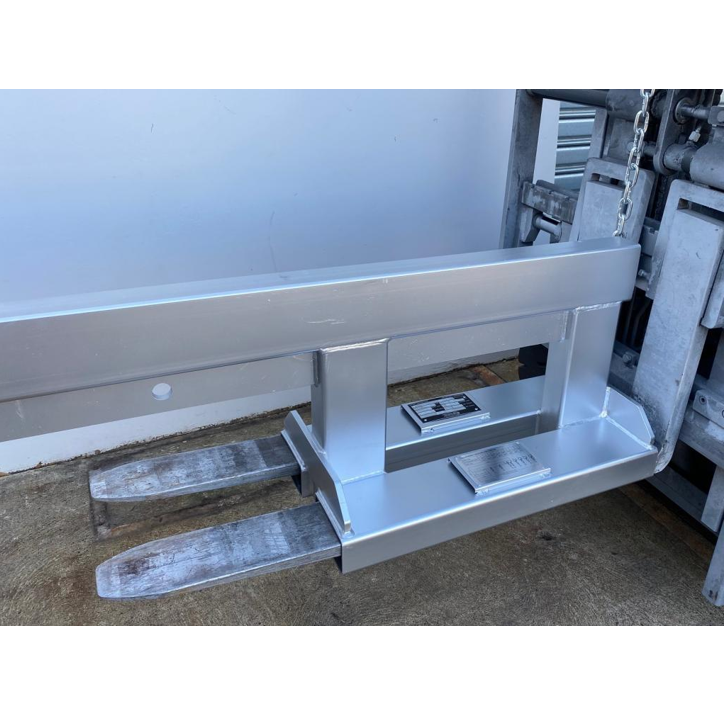

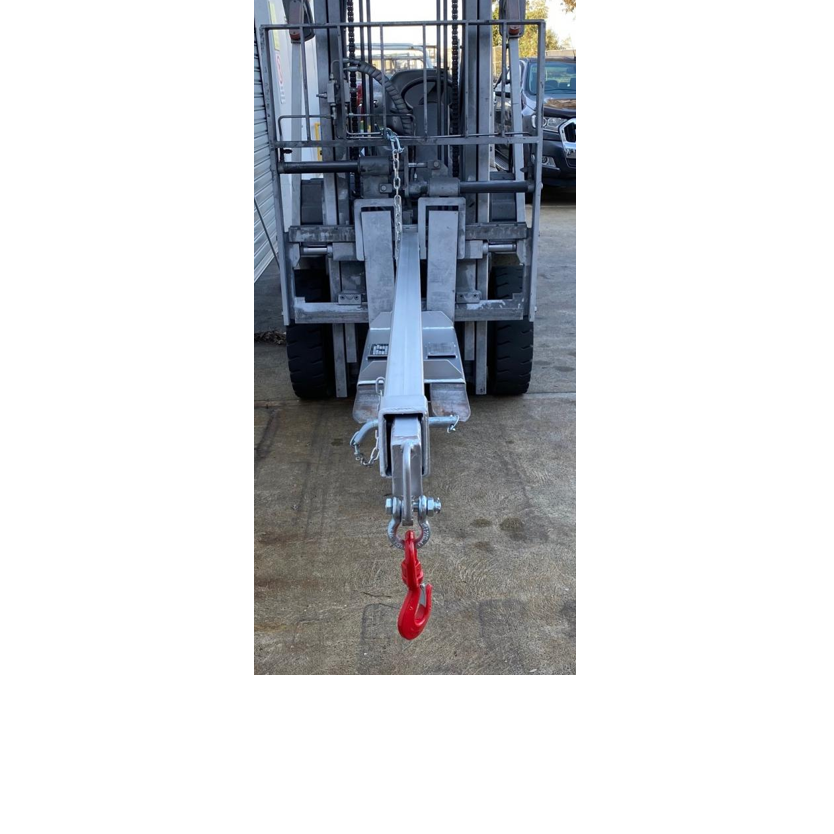

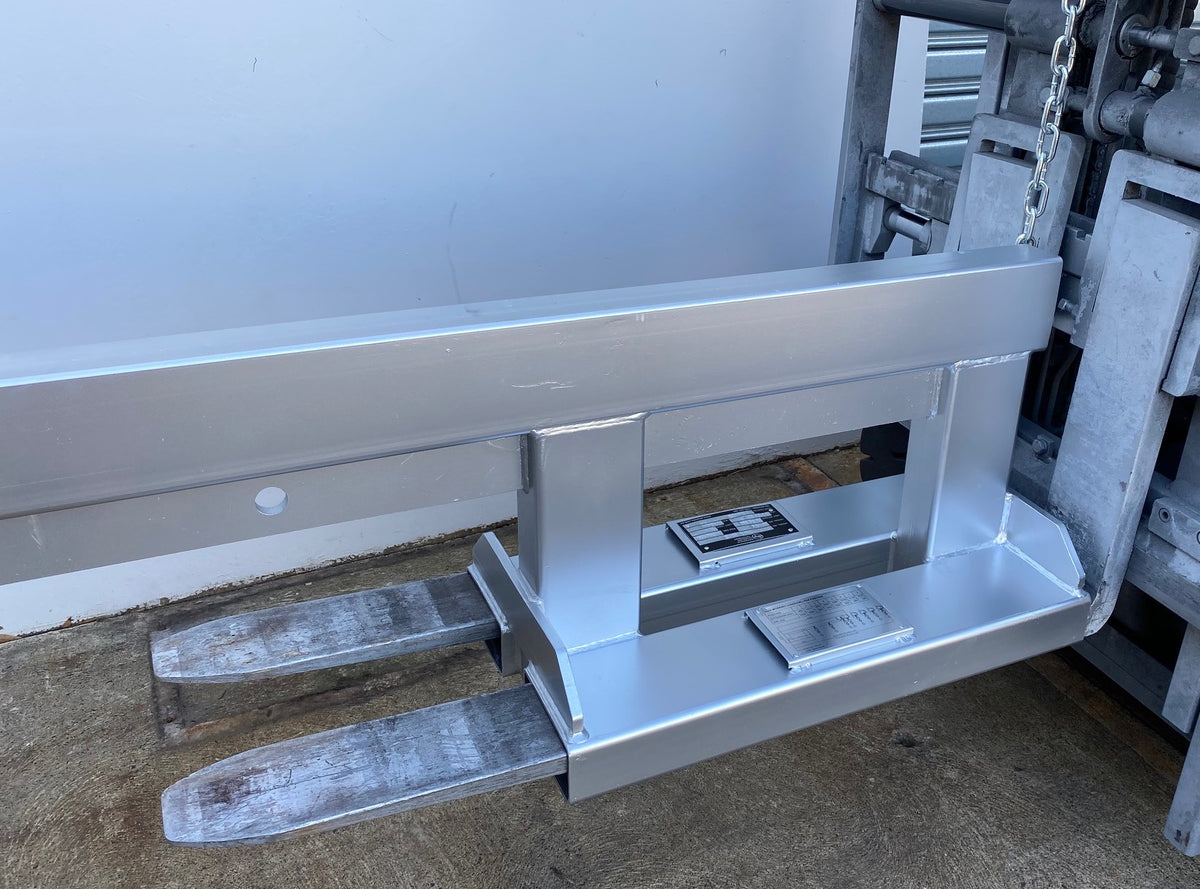

The unit features 150 × 75 mm fork pockets with 225 mm centres, allowing fast slip-on installation. Once fitted, the jib secures to the forklift with a safety chain for stable and safe lifting. Supplied complete with a hook and shackle, it’s ready for immediate operation.

Key Specifications

• Safe Working Load (SWL): 2500 kg max

• Extension Range: 950 - 3520 mm (8 positions)

• Unit Weight: 135 kg

• Pocket Size: 150 × 75 mm

• Pocket Centres: 225 mm

• Load Centre: 950 mm

• Horizontal C of G: 1160 mm

• Vertical C of G: 185 mm

• Finish: Hot Dipped Galvanised

• Includes: Hook and Shackle

All our forklift attachments are fully compliant, supplied with a conformance plate, with a compliance certificate available upon request.

Download the RJL2.5 spec sheet (PDF)
