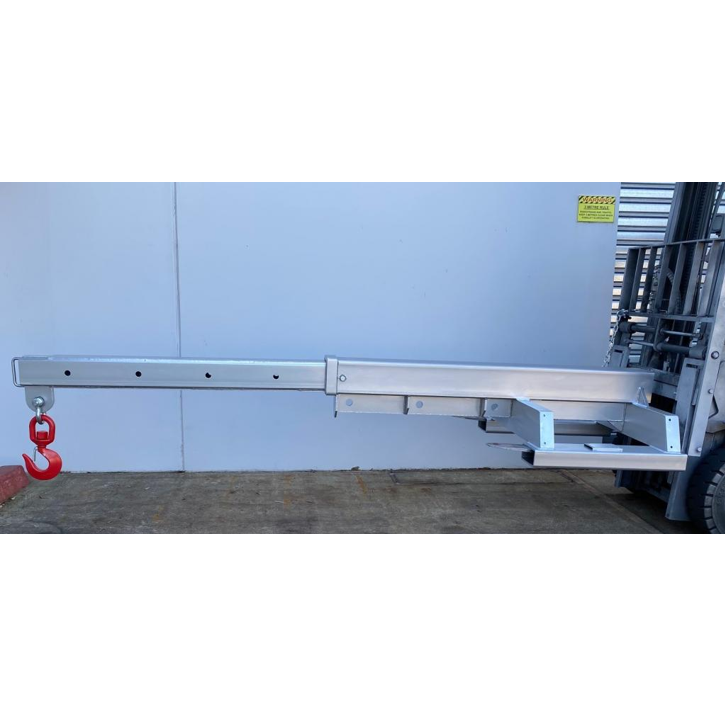

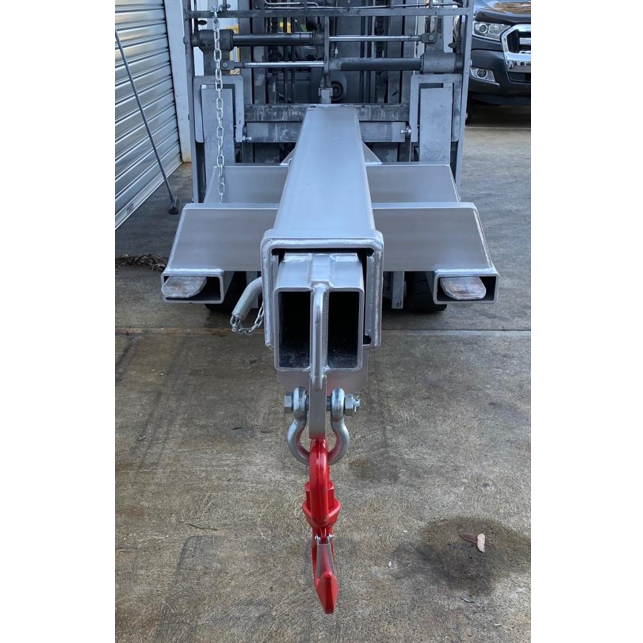

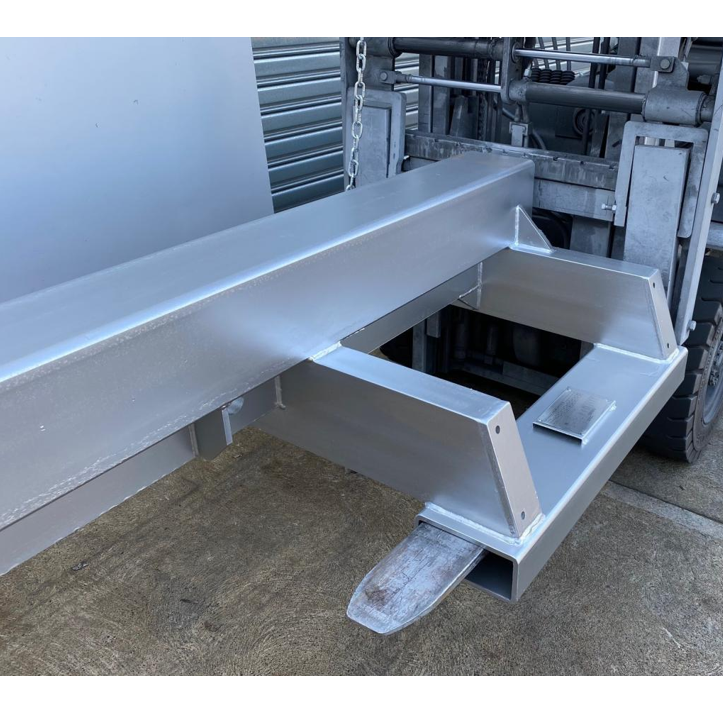

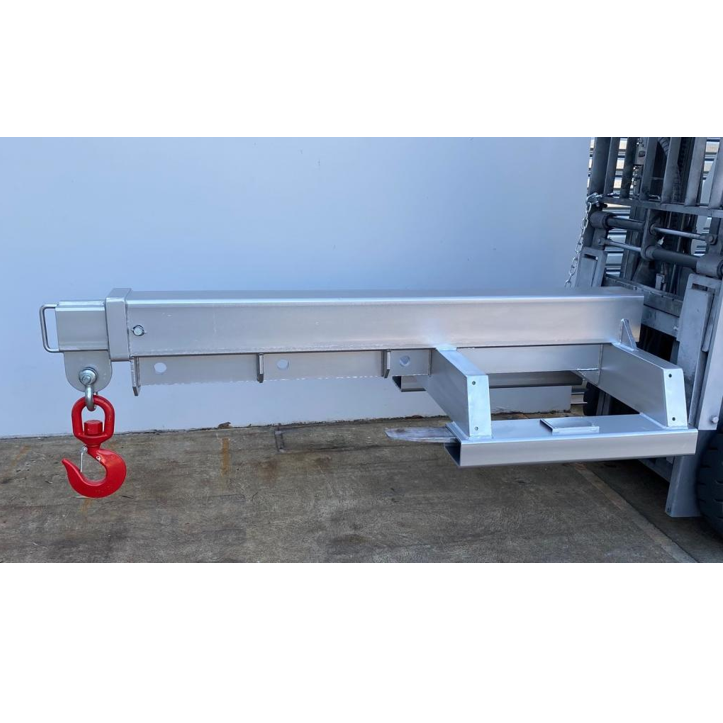

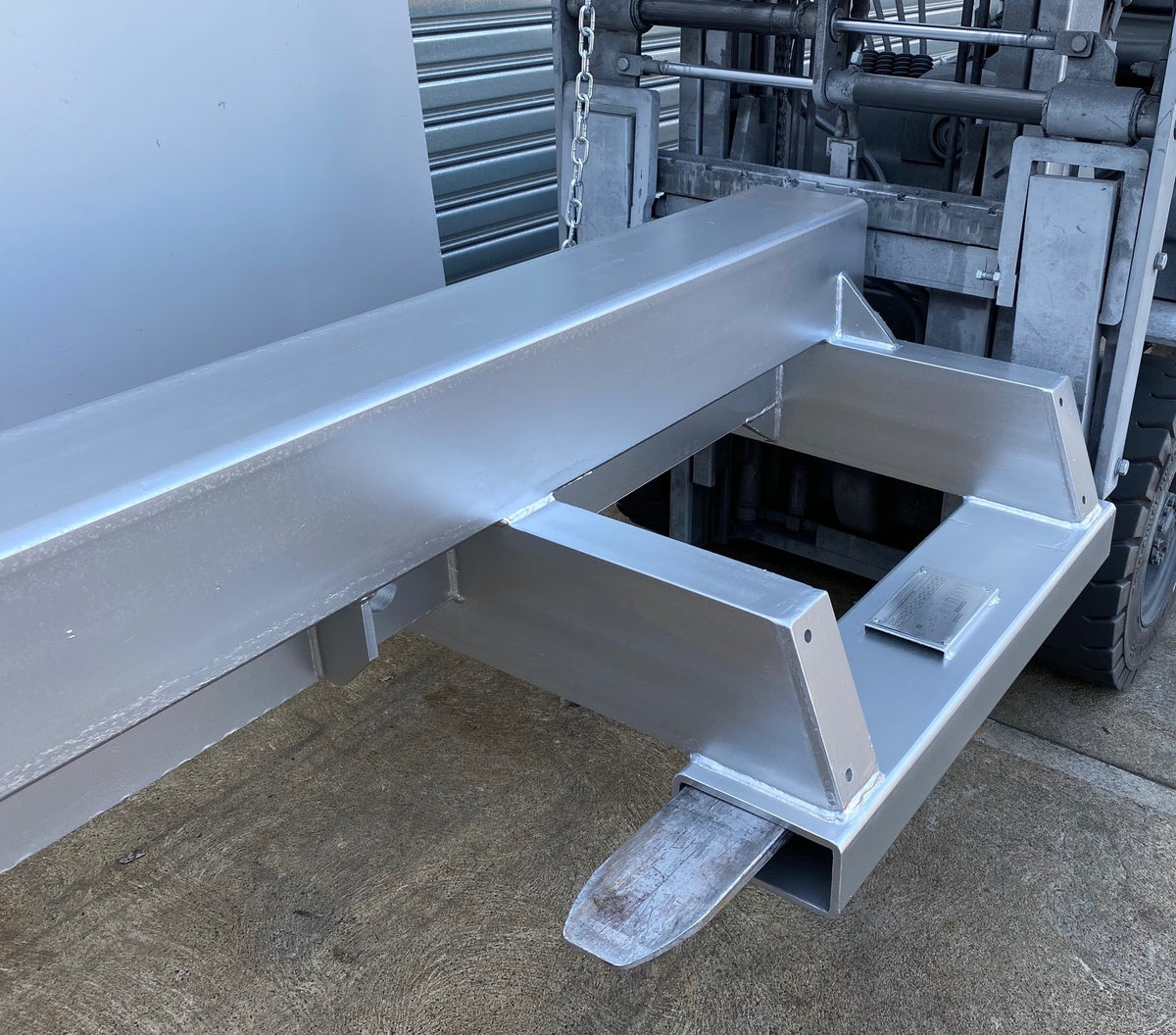

Forklift Jib Attachment 7.5 Tonne Rigid Long - DHE-RJL7.5

Forklift Jib 7.5 Tonne Rigid Long – DHE-RJL7.5
The DHE-RJS7.5 Rigid Jib 7.5 Tonne Long allows for additional lifting height with the extension beam raised above the fork pockets. The overall length when retracted is 2.19 metres and when extended is 3.56 metres.
– Unit Weight 450Kgs
– Pocket Size 180mm x 80mm
– Pocket Centres 875mm
Horizontal Centre of Gravity 1200mm
Vertical Centre of Gravity 100mm
Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Extension ( mm) | 920 |
1380 | 1805 | 2045 | 2425 | 2805 | 3185 | 3565 |
SWL (kg) | 7500 | 6410 |
5700 | 4950 |
3750 | 1950 | 1140 | 720 |
– The standard finish on this unit is Zinc plated.
– Supplied with Hook and Shackle.
All our Forklift attachments are fully compliant and come with a conformance plate attached. A compliance certificate and operations manual are available upon request.
