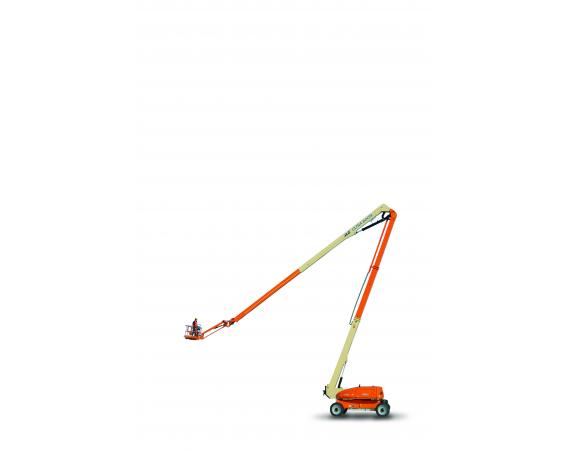

125ft Ultraboom 4WD Diesel Knuckle Boom Lift
The 125ft Diesel knuckle boom lift is classified as an ultraboom Diesel articulated knuckle boom lifts with a stowed width of only 2.49m, but will need to extend its axles out to 3.81m in order to operate . This boom has exceptional height and horizontal reach for its size. It does need to come out on a semi so please make sure you allow sufficient access to receive your machine . This is suitable for all outdoor work in high spaces. Ideal for maintenance or electricians, plumbers, telecommunications etc....
Do I need a licence to operate this machine?
It depends on the boom length. In Victoria, a boom lift with a boom under 11 metres needs no high risk work licence (the operator must still be trained and competent); a boom of 11 metres or more needs a WorkSafe Victoria Class 24 boom-type elevating work platform licence (WP). Call us and we'll confirm for this machine. Most sites will also ask to see an EWPA Yellow Card, which is industry accreditation, not a licence.
Why choose the 125ft Diesel Knuckle Boom Lift?
- Outdoor
- Diesel Engine - Comes with a full tank
- Safe Working Load - 230kg
- Maximum Working Tilt - 4 Degrees
- Gradeability while stowed - 45%
- Working Height 40.3m
- Horizontal Outreach 19.25m
- Width 2.49m - 3.81m
- Height 3.05m
- This unit is suitable for dirt or gravel. MUST BE rated to 22 tonne minimum
- All the measurements above and in the spec sheets are approximates, and may not be the brand available at the time of hire. Please call the office on 03 9702 7977 to confirm your machine.
125ft - 38.1m Working Height
| Working Height | 40.30m |
| Platform Height | 38.30m |
| Horizontal Outreach | 19.25m |
| Stowed Height | 3.05m |
| Width | 2.49m-3.81m |
| Weight | 21000kg |
