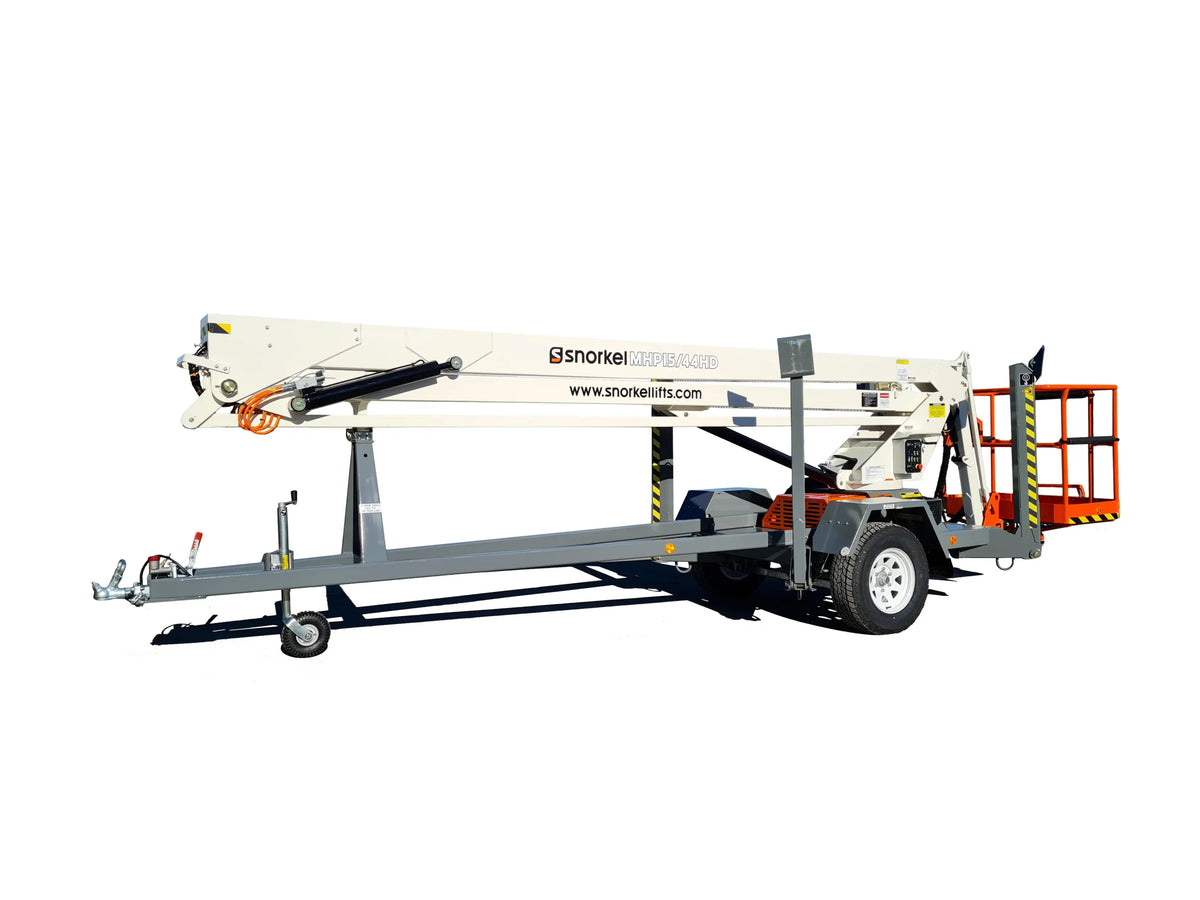

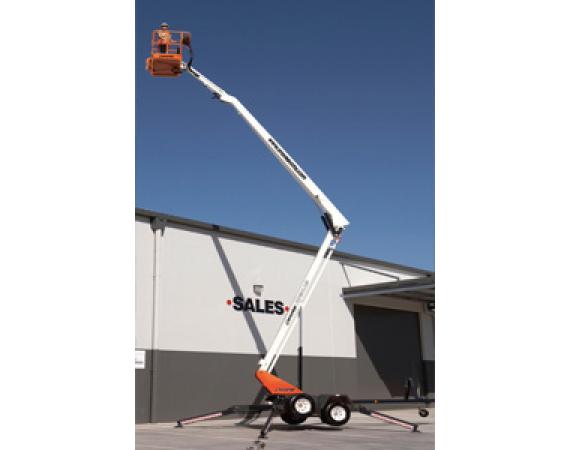

Snorkel 45ft Towable Trailer Boom Lift

Snorkel 45ft Towable Trailer Boom Lift
Snorkel 45ft Towable Trailer Boom Lift

Manufactured for the Australian market, the MHP15HD is a heavy duty trailer mounted boom lift. The towable cherry picker provides quick access and delivers precision on the jobsite.

Rugged and reliable, the machine by Snorkel Ahern Australia is ideal for general maintenance and construction. Automatic self-leveling capabilities are suitable for safe and versatile working at height. Independently operated, the hydraulic outriggers are also equipped with pot hole protection.

A durable two-man steel platform can lift a safe load up to 200kg. A 600V AC rated wire platform allows operators to use power tools up high. Well-suited for a wide range of applications, the MHP15HD can be used for building maintenance, construction sites and other elevated work.

The MHP15HD is also equipped with fully proportional speed controls for added flexibility. A versatile jib with 140° rotation delivers smooth and accurate precision. Enhanced side-to-side maneuverability provide even more access to hard-to-reach places.

An articulated boom makes the MHP15HD easy to store. Designed to be lightweight, it is also easy to transport between jobs. The towable trailer mounted boom can go and work anywhere with ease.

Fitted with a superb 5hp efficient engine, this trailer boom provides reliable performance. Optional bi-energy power offers clean and quiet operation in low emission environments.


  • Two man steel platform
  • Heavy duty tow coupling
  • Heavy duty jockey wheel
  • Hydraulic disc brakes
  • Reliable petrol engine
  • Platform rotator
  • Automatic self-levelling stabilizers
  • Hour meter
  • Rotating basket mount

    The Snorkel 45ft Towable Trailer Boom Lift delivers precision and safety on the job. With automatic self-leveling capabilities, a two-man steel platform and a 600V AC rated wire platform, the MHP15HD is ideal for general maintenance and construction projects, delivering a safe load capacity of up to 200kg. Perfect for a variety of applications, the tried and trusted Boom Lift is manufactured to Australian standards.

Working Height 14.80m
Platform Height 12.80m
Horizontal Outreach 7.00m
Stowed Height 1.90m
Width 1.77m-3.70m
Weight 1760kg
