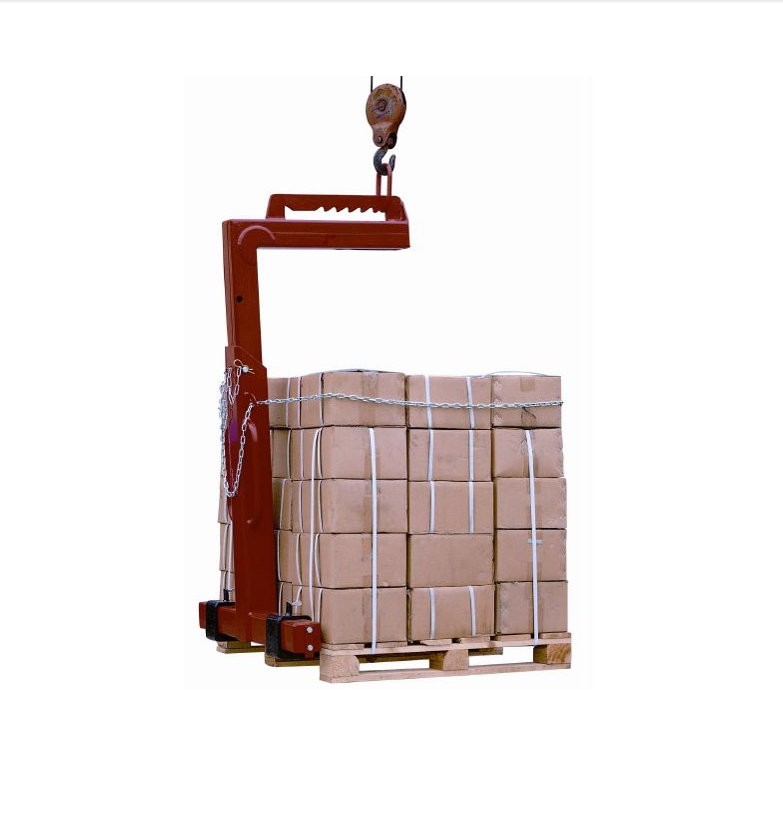

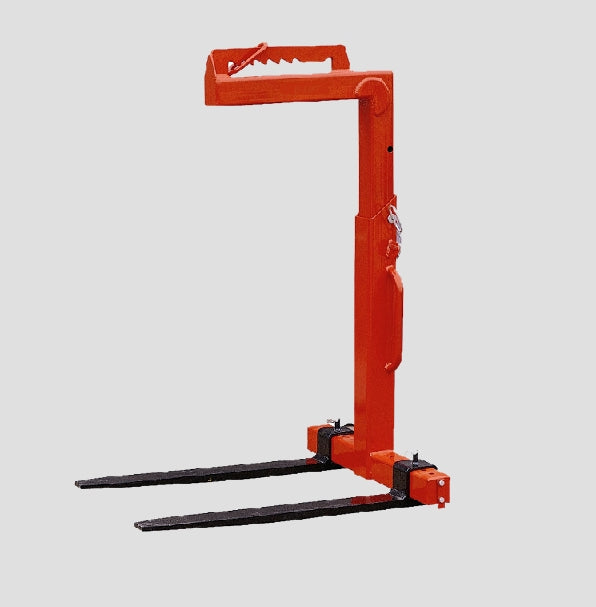

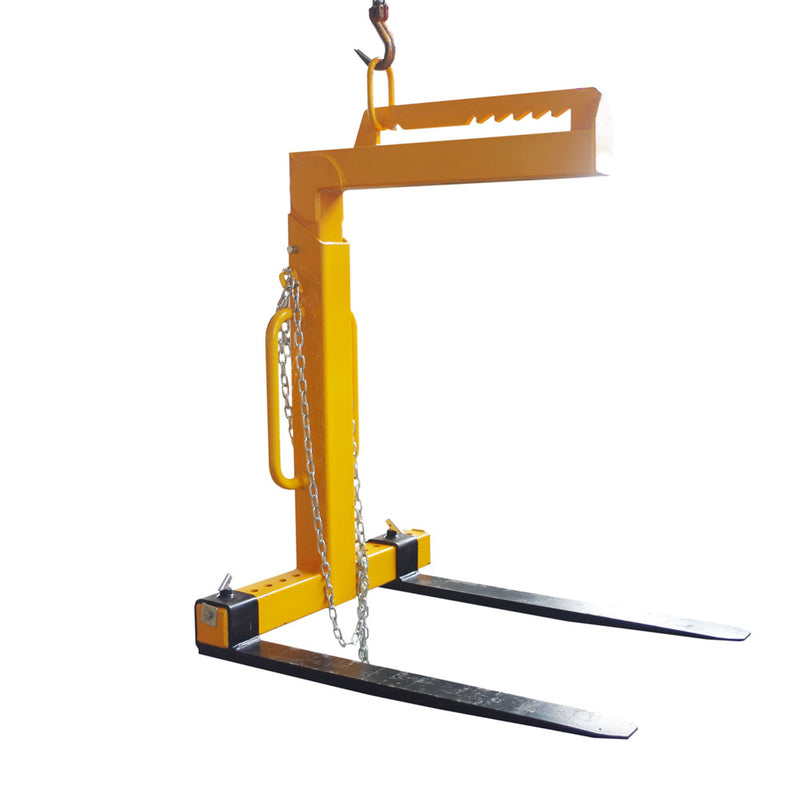

Crane Pallet Lifters – 1T to 5T (DHE-PLCK Series)
The DHE-PLCK Crane Pallet Lifter Series offers a heavy-duty lifting solution designed for cranes, overhead hoists, workshops, fabrication yards, and construction environments. Each model is equipped with manual weight balancing, adjustable fork width, and adjustable height, allowing operators to safely lift palletised loads in areas where forklifts cannot operate.
The balancing system automatically engages when the shackle is positioned into the correct notch, ensuring stable and level lifting. All models deliver reliable performance, high load ratings, and robust construction for demanding industrial use.
Key Features (All Models)
-
Manual weight balancer for stable lifting
-
Adjustable fork width for various pallet sizes
-
Adjustable height for different crane setups
-
Automatic balancing system (shackle-engaged)
-
High-strength steel construction
-
Ideal for construction, manufacturing, logistics & workshops
-
Engineering certificates and load test certificates available (on request)
Specifications Table
| Model | SWL (kg) | Unit Weight | Adjustable Fork Width | Effective Height | Fork Length | Fork Cross Section / Fork Size | Hook Height | Overall Size |
|---|---|---|---|---|---|---|---|---|
| DHE-PLCK1 (1 Tonne) | 1000 kg | 128 kg | 350–900 mm | 1100–1600 mm | 1000 mm | 100 × 30 mm | 1390–1890 mm | — |
| DHE-PLCK2 (2 Tonne) | 2000 kg | 189 kg | 400–900 mm | 1300–2000 mm | 1000 mm | 120 × 40 mm | 1640–2340 mm | — |
| DHE-PLCK3 (3 Tonne) | 3000 kg | 250 kg | 450–600 mm | 1300–2000 mm | 120 × 50 × 1000 mm | 120 × 50 mm | 1670–2370 mm | 1140 × 920 × 1670 mm |
| DHE-PLCK5 (5 Tonne) | 5000 kg | 370 kg | 530–1000 mm | 1300–2000 mm | 150 × 60 × 1000 mm | 150 × 60 mm | 1700–2400 mm | 1160 × 1020 × 1700 mm |
Prefer automatic weight balancing? Check out the DHE-PLCY Self-Levelling Crane Pallet Lifters for enhanced stability and control.
| Weight | 128kg |
| Lift Capacity | 1,000kg |
